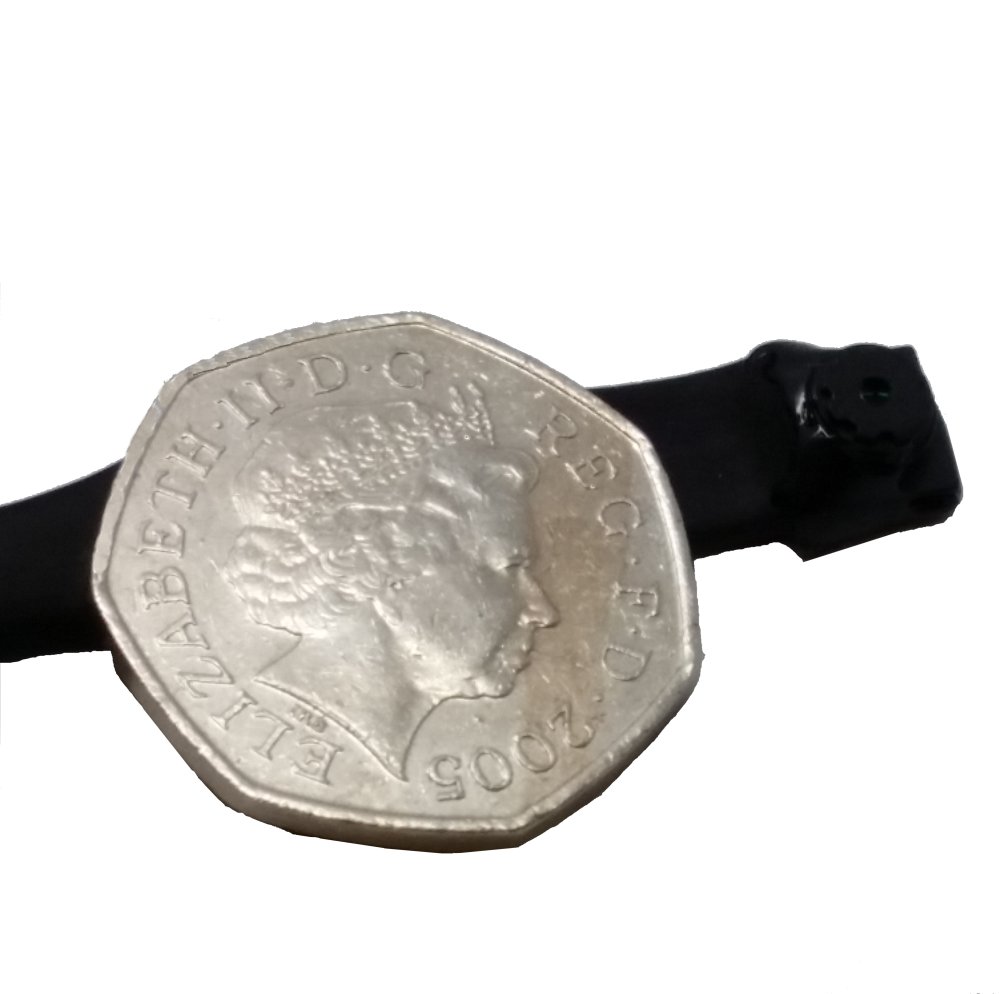

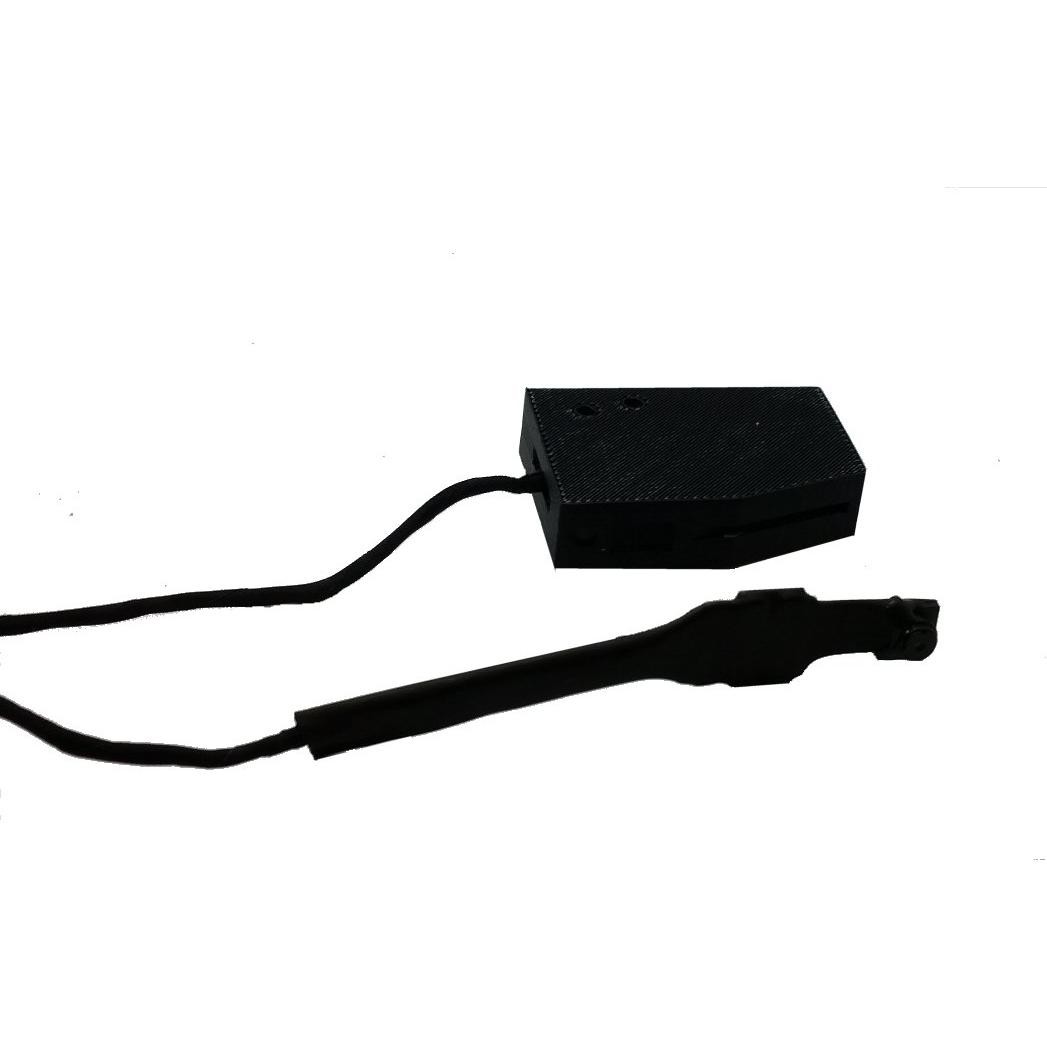

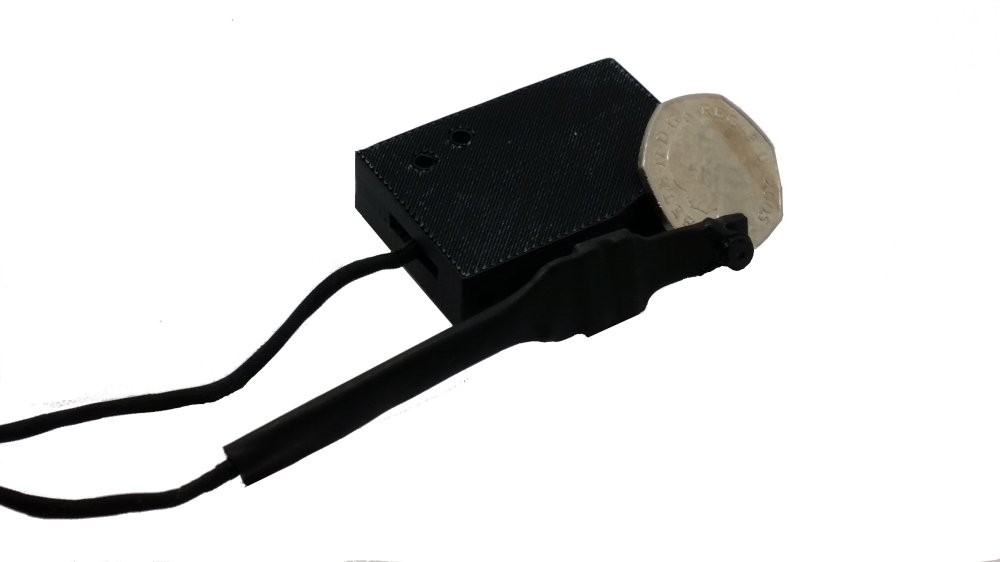

Our HD Custom Camera Module is unique to our company and is built in our own workshops. The custom module product code CCM has been designed and released following many requests from customers wanting a small camera module that they can easily fit and hide themselves taking advantage of the tiny pinhole lens . The camera can be used for hiding it in a car, nursing home, looking through a hole in a metal pole e.g. chair leg, in a picture frame/canvas, and due to the amazing versatility of this module, there are thousands of other great/discreet places this can be hidden, virtually anywhere!
Just to increase the many uses of this camera we were able to offer you a whole range of additional extras that widely increase the amount of places and ways that this can be concealed;
• 1M Power Lead – The battery connectors as standard are around 6”, if you wish to conceal your battery further away, we will increase the lead to 1 metre.
• 12V Wiring Kit – If you do not want to keep recharging the battery, this extra lets you connect a 12V-5V dropper in place of a battery so you can connect directly to a 12V DC power supply or car battery.
This clever gadget records video/audio directly onto a Micro-SD Card so you can view it at any time on your PC/Smartphone by removing the Micro-SD card and inserting it where you want to watch it. Time and Date can be set on the unit if you need it for official uses.
The camera comes ready to go complete with battery, built in charger and SD card. This camera is designed for ease of use and can be operated by a single button press.. On the SD card is a programme that can interface with the camera and allow numerous settings to be changed if you so wish although the default settings that we send it out with are suitable for most people.
Please note
The setup programme requires window XP or above to run. The Setup programme is required to change settings but it is not needed to view recordings as these can be viewed with any programme that can view MP4 files. If using the extreme battery it is recommended you purchase the charger with it as it takes around 40 hrs to recharge it using the built in charger.
Specifications
1/4” CMOS WXGA HD Sensor / H.264/AVC1 DSP / Hynix 512M DDR2
Video: 1080p HD H.264/H.265 video codec, 1920 x 1080 25/30fps .mp4Video format Mp4
Angle of View – 60 degrees approx.
Supports up to 64GB micro SD card.
Power Consumption
24 hrs. battery life in standby using the standard battery
48 hrs. battery life in standby with the long life version.
180 hrs. battery life in standby with the Extreme battery. ( 7 days )
Storage consumption ( SD card) 7GB per hour @ 1080p 4GB per hour @720p
Please note if you use your own 64 GB micro SD card it needs to be reformatted to FAT32
These are an approximate guide only as many factors can affect both the battery life and the storage consumption such as image content, light levels and temperature
